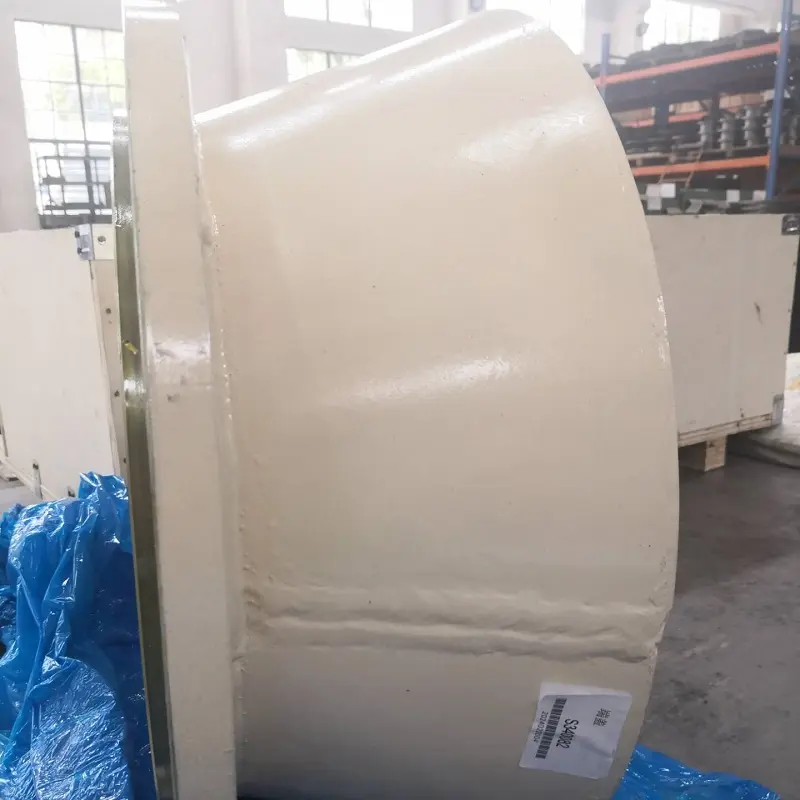

In the mining and mineral processing industry, cone crushers are indispensable equipment used to break large pieces of ore into smaller particles. Metso cone crushers are widely popular for their efficient and stable performance. However, to ensure the long-term stable operation of the equipment, the selection and maintenance of the protection board are of vital importance. This article will explore the application of protection plates in Metso cone crushers and how to enhance the performance and service life of the equipment by optimizing the design and materials of the protection plates.

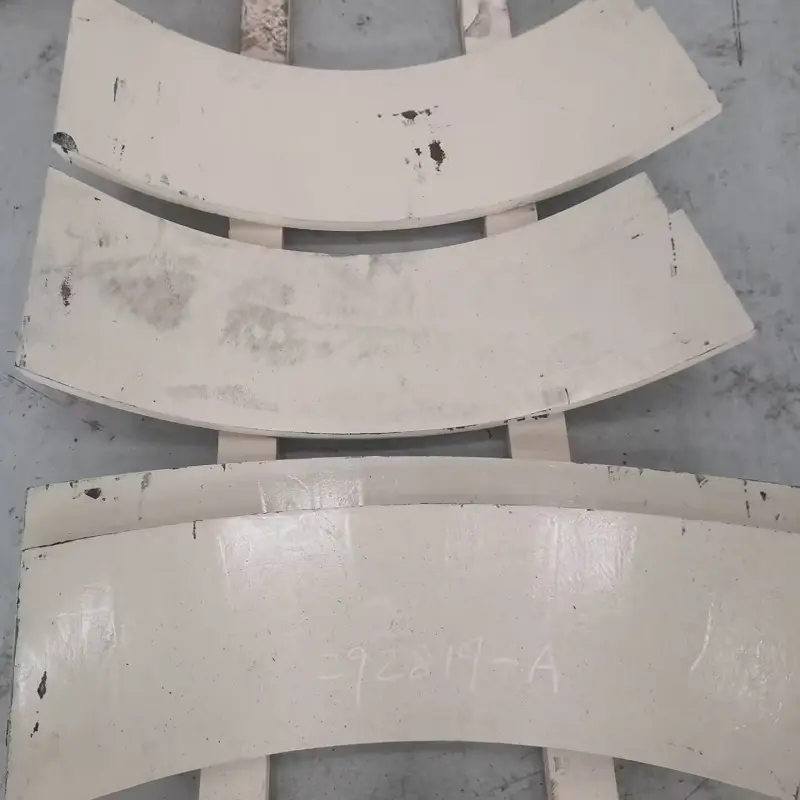

First, the function of the protective board
1.Reduce wear and tear
During the operation of Metso cone crushers, the crushing of ores will cause a large amount of wear, especially in key parts such as the crushing chamber and the main shaft. The main function of the protective board is to reduce the wear of these key components and extend the service life of the equipment. By installing protective plates at the key parts of the crusher, the impact force of the ore can be effectively dispersed and direct wear can be reduced.
2. Improve efficiency
The protective plate can not only reduce wear but also improve the operational efficiency of the crusher. High-quality protective plates can ensure the uniform distribution of ores in the crushing chamber, reduce clogging and material jamming, and thereby improve the crushing efficiency. In addition, the design and material selection of the protection plate will also affect the energy consumption and maintenance cost of the crusher.
Second, the material selection of the protective board
1.High manganese steel
High manganese steel is a commonly used material for protective plates, featuring excellent toughness and wear resistance. High manganese steel undergoes work hardening when subjected to impact, significantly increasing its surface hardness and thereby enhancing its wear resistance. This material is suitable for working conditions with high impact and high wear, and can effectively withstand the impact and friction of ores.
Advantages:
High toughness: High manganese steel has excellent toughness, capable of withstanding significant impact forces and is not prone to breakage.
Work hardening: When subjected to impact, the surface of high manganese steel undergoes work hardening, significantly increasing its hardness and enhancing its wear resistance.
Wide adaptability: It is suitable for crushing various ores, especially performing well when crushing ores with high hardness.
Disadvantage:
Low initial hardness: The initial hardness of high manganese steel is relatively low and it needs to gradually harden during use.
High processing difficulty: The processing performance of high manganese steel is poor and the processing cost is relatively high.
2. High-chromium cast iron
High-chromium cast iron is a high-performance wear-resistant material, featuring high hardness and excellent wear resistance. The hardness of high-chromium cast iron is usually between HRC 58 and 65, which can effectively resist the wear of ores. This material is suitable for working conditions with high wear and low impact, and can significantly extend the service life of the protective plate.
Advantages:
High hardness: High-chromium cast iron has a high hardness, which can effectively resist the wear of ores and extend its service life.
Good wear resistance: It performs well under high-wear conditions and can significantly reduce wear and replacement frequency.
Strong adaptability: It is suitable for crushing various ores, especially when crushing ores with strong abrasiveness, the effect is remarkable.
Disadvantage:
High brittleness: High-chromium cast iron has relatively high brittleness and poor impact resistance, and is prone to fracture under high-impact conditions.
High processing difficulty: The processing performance of high-chromium cast iron is poor and the processing cost is relatively high.
Third, the design optimization of the protection board
1. Structural design
The structural design of the protection plate should be optimized according to the specific working conditions of the Metso cone crusher. For instance, the thickness and shape of the protection plate should be adjusted according to the size of the crusher and the shape of the crushing cavity to ensure the best protection effect. In addition, the installation method of the protection board should also be convenient for maintenance and replacement to reduce downtime.
2. Surface treatment
To further enhance the wear resistance of the protective plate, surface treatment techniques such as sandblasting, painting or heat treatment can be adopted. These surface treatment processes not only enhance the surface hardness of the protective plate but also reduce the adhesion of the ore, further extending the service life of the protective plate.
Fourth, practical application cases
1.Ore crushing
A certain mining enterprise installed high manganese steel protective plates on Metso cone crushers and found that they performed well when crushing ores with high hardness and could effectively withstand the impact and wear of the ores. Although the initial hardness of high manganese steel is relatively low, through work hardening, its surface hardness gradually increases, significantly enhancing its wear resistance. The enterprise reported that the service life of high manganese steel protective plates has increased by more than 30% compared with that of ordinary materials.
2. Construction waste treatment
A certain construction waste processing enterprise installed high-chromium cast iron protective plates on Metso cone crushers and found that they performed well in crushing highly abrasive materials such as concrete blocks and bricks, significantly reducing wear and replacement frequency. Although high-chromium cast iron is more brittle, its wear resistance is significantly better than that of high manganese steel under low-impact conditions. The enterprise reported that the service life of high-chromium cast iron protective plates has increased by more than 50% compared with that of high-manganese steel protective plates.
Fifth, Conclusion
The application of protective plates in Metso cone crushers is of vital importance, as it can effectively reduce the wear of key components, enhance the operational efficiency and service life of the equipment. Selecting the appropriate protective board material and design is the key to ensuring the long-term stable operation of the equipment. High manganese steel and high chromium cast iron are two common materials for protective plates, each with its own advantages and disadvantages. When choosing a protection plate, a comprehensive consideration should be made based on the specific working conditions and requirements to ensure the efficient operation and long-term stable use of the crusher. By rationally choosing and using high-quality protection plates, the crushing efficiency can be significantly improved, maintenance costs can be reduced, and the service life of the equipment can be prolonged.
