The Clearance Between the Cone and Liner: Its Impact on Crushed Product Size

The Clearance Between the Cone and Liner: Its Impact on Crushed Product Size

Has your cone crusher been producing output that fluctuates wildly between coarse and fine, with liners wearing down abnormally fast? The problem likely isn’t the rock itself, but rather the clearance between the cone and liner playing tricks. This invisible parameter acts as a hidden valve controlling the final product size. Set too tight, output drops and iron overload risks surge; set too loose, stone powder piles up and particle size becomes unmanageable. This article cuts through the noise—we’ll dissect and clarify exactly how this “clearance” shapes your product. From fundamentals to real-world testing, I’ll help you find the sweet spot balancing output and particle size. Read on, and your crusher will handle tough materials while delivering quality output.

I. What Exactly Is Clearance? How Does It Determine a Stone’s Fate?

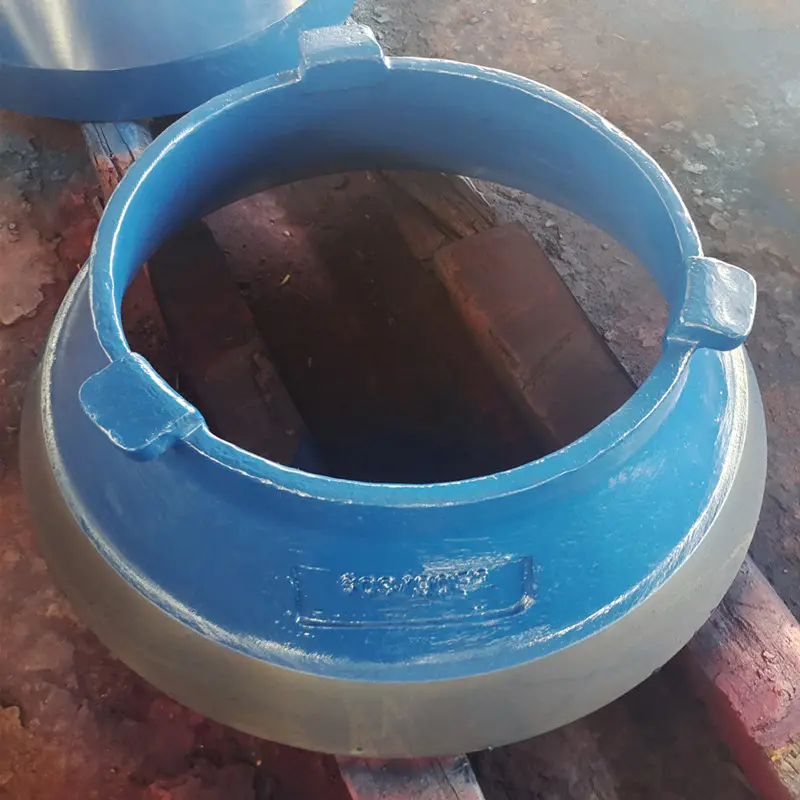

Simply put, the clearance is the distance between the moving cone (mantle) and the fixed cone (liner) at their closest point (parallel zone). This isn’t a fixed value but dynamically changes with liner wear.

A stone falls from the feed opening and undergoes compression and impact within the crushing chamber. When it reaches the parallel zone, the gap size directly determines its final “fate.” With an optimal gap, the stone is crushed just right, and qualified-size material is smoothly discharged. If the gap is too large, inadequately crushed chunks slip through. If the gap is too small, stones are over-crushed, resulting not only in low output and high energy consumption but also generating excessive fines.

Thus, the clearance acts as the “final arbiter” of the crushing process. It controls the discharge opening size, thereby determining the upper limit and distribution of the product particle size.

Field Case: At a granite quarry in Shandong, output suddenly dropped by 15%. After checking the motor and hydraulic pressure—both normal—it was discovered that the newly replaced mantle had a slight model difference from the old liner, resulting in an actual clearance 3mm larger than designed. This 3mm discrepancy caused substantial medium-sized rock to discharge without adequate crushing, drastically increasing the return material rate.

User Question: We always install new liners per the manufacturer’s manual—shouldn’t the gap be standard?

Answer: Manuals provide theoretical values. Actual installation factors like bolt tightening sequence, torque, and even foundation levelness affect final clearance. Always verify with lead weights or professional measuring tools during no-load operation. Practically speaking, measuring and recording actual gaps after installation is more reliable than blindly following manuals.

II. How Does Gap Precision Affect Particle Size Distribution? It’s Not Just About Maximum Size

Many focus solely on whether gaps allow “oversize particles” to pass. In reality, they finely regulate the entire particle size curve.

First, it determines the maximum discharge particle size. This is the most direct relationship. Theoretically, the maximum discharge size is approximately equal to the discharge opening width (clearance). However, it is actually slightly larger because irregular stones are “squeezed” out.

More crucially, it affects the product gradation. Proper clearance produces good “laminar crushing” effects. Stones compress each other, generating more intermediate-sized finished products (such as high-quality aggregates between 20-40mm). . If the gap becomes misaligned, the laminating effect deteriorates, resulting in either oversized chunks or fines, with a significant reduction in the proportion of usable intermediate material.

Finally, there’s the issue of fines content. An excessively small gap causes pressure in the parallel zone to surge dramatically. The proportion of rock “ground” into fines increases significantly. This is a critical problem for ready-mix plants or asphalt mixing plants that require strict control over fines content.

Field Data: Comparative testing on an HP300 cone crusher revealed that adjusting the working gap from 32mm to 35mm (a mere 3mm increase) caused the proportion of target 25-31.5mm particles to drop from 42% to 35%, while oversize material exceeding 31.5mm rose from 8% to 15%. The particle size curve noticeably coarsened.

User Query: Is adjusting the gap solely dependent on replacing liners of different thicknesses?

Answer: This is the primary method, but not the only one. By adjusting the locking ring and adjusting ring at the top of the crusher, the vertical position of the moving cone can be fine-tuned, thereby making small adjustments to the parallel gap. This is the most commonly used “quick fix” for daily fine-tuning of particle size.

III. Beyond particle size, what chain reactions can abnormal clearance trigger?

An improper clearance, like a faulty gear, disrupts the entire system. Its impact extends far beyond particle size issues.

First, it causes abnormal liner wear. Excessively narrow clearance subjects the parallel zone to pressures far exceeding design limits, accelerating wear in a “concave” pattern. Conversely, excessive clearance allows stones to slide and roll uncontrollably within the crushing chamber, causing non-working surfaces of the liner to suffer impact erosion and form irregular grooves. Both types of wear further worsen the clearance, creating a vicious cycle.

Second, equipment vibration and overload occur. Uneven clearance (e.g., one side larger than the other) causes uneven force distribution on the moving cone, generating abnormal vibration and unbalanced loading. This directly damages the main shaft bearings and frame. Current fluctuations also increase, frequently triggering overload protection.

The most dangerous consequence is reduced iron passage capability. A properly designed clearance allows pressure release via the hydraulic system when encountering non-crushable foreign objects (like iron blocks), enabling their discharge. If the clearance becomes excessively small due to wear, iron blocks may become jammed, leading to major accidents such as “machine stalling” or liner rupture.

Real-world lesson: At a copper mine in Yunnan, pursuing finer crushing led to persistently undersized clearances. Consequently, the entire set of manganese steel liners developed severe perforations in the parallel zones before reaching 70% of their expected lifespan. The downtime and replacement costs far exceeded any gains from producing finer particles—a classic case of “picking up sesame seeds while losing watermelons.”

User question: How can one determine if liner wear is caused by improper clearance?

Answer: Focus on wear patterns. Uniform wear conforming to the liner contour is normal. Localized severe indentations in the parallel zone or deep grooves in non-crushing areas typically indicate clearance control issues. Photographing worn liners during each replacement provides the best diagnostic evidence.

IV. How to Measure, Adjust, and Maintain Optimal Working Clearance?

Understanding its importance is key, but execution matters. This is a closed-loop process from installation to maintenance.

Step 1: Precise Initial Measurement. After installing new liners, use the lead weight method. Under no-load conditions, place several lead weights (or a specialized measuring rope) into the crushing chamber and rotate the equipment to flatten them. Measure the thinnest point of the flattened lead weights and take the average—this is the actual working gap. Measure at multiple points around the circumference to verify uniformity.

Step 2: Setting and Adjustment Strategy. The optimal clearance depends on your target product. Generally, the initial working clearance should be set at 1.3–1.6 times the desired maximum output particle size. For example, aiming for 30mm maximum output would set the clearance at 39–48mm. Then fine-tune using the adjustment ring to find the optimal point for both output and particle size.

Step 3: Operational Monitoring and Compensation. Liner wear causes clearance expansion. Establish a regular inspection protocol. Monitor trends in crusher current, oil temperature, and vibration levels to indirectly assess clearance deterioration. A more direct approach involves periodic shutdowns to inspect parallel zone wear using simple probes or endoscopes.

Maintenance mantra: Observe diligently, adjust early, make small steps. Do not wait until particle size is completely out of control or liners are worn through before addressing issues. Each time you make a fine adjustment to the adjustment ring, record the number of turns and the corresponding particle size change to build your own equipment database.

User question: We don’t have professional measuring tools. Is there a rough method to estimate the gap?

Answer: Emergency methods exist. After shutdown, bend a hard wire of known length into an L-shape. Insert it through the feed opening, hook the lower end of the moving cone, and mark the fixed cone. Measure the distance from this mark to the fixed cone’s upper edge for a rough gap estimate. However, this method has significant error and should only be used for temporary trend assessment. Investing in professional measurement tools is essential.

The clearance between the mantle and liner is not a parameter set once during installation and forgotten. It is the “pulse” of the crusher’s operational state, reflecting wear in real time and directly dictating the quality of the final product. Savvy operators know how to listen to this “pulse”: through precise initial setup, vigilant monitoring during operation, and timely adjustments based on data and experience, they ensure the crusher consistently operates efficiently and economically. Mastering this seemingly minor clearance gap is key to truly controlling the product size’s lifeline, achieving the win-win of stable high output and controllable costs. Remember, in crushing, the greatest benefits and highest risks often lie in the details.

FAQ: Common Questions About Cone Crusher Clearance

Q1: For clearance measurement, is it better to use lead weights or professional sensors?

A: The lead weight method is reliable, low-cost, and the industry standard—but requires shutdown. Online sensors enable real-time monitoring but involve higher investment and must withstand harsh conditions (dust, vibration). For most production lines, periodic (e.g., weekly) lead weight measurements combined with daily operational parameter monitoring offer the best cost-performance solution.

Q2: Why does particle size remain suboptimal during initial operation after installing new liners?

A: This is common and termed the “break-in period.” New liners have smooth surfaces, resulting in slightly lower crushing efficiency. Typically, after 8-24 hours of operation, the liner surface is “ground” by the material to achieve optimal roughness. This maximizes laminar crushing efficiency, leading to stable particle size. During this period, minor gap adjustments may be made.

Q3: How much does the gap change per full rotation of the adjusting ring?

A: This depends on the crusher model and the thread pitch of the adjusting ring. Typically, for medium-sized cone crushers, rotating the adjustment ring one full turn changes the discharge opening by approximately 2-4 millimeters. This data is critical—you should find the exact value in the equipment manual or verify it through actual operation measurements, then post it on the control console.
