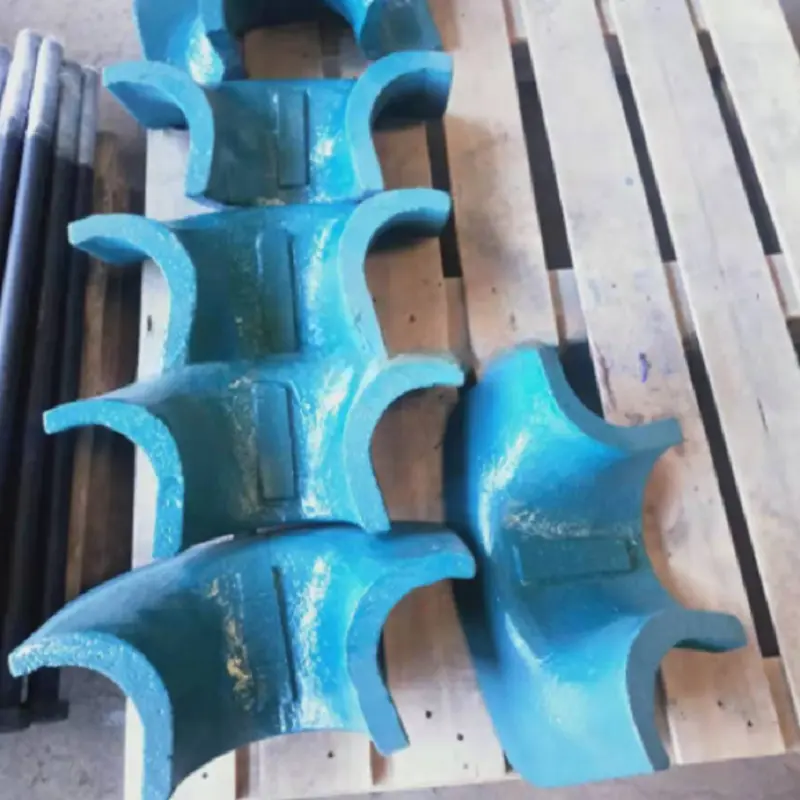

In the complex ecosystem of heavy crushing machinery, every component is a crucial link to ensure the continuous operation of the equipment and achieve a return on investment. The auxiliary axle box guard, this seemingly simple protective component, actually plays an indispensable role in safeguarding the core transmission system from external contamination and internal lubricant leakage. An unqualified shield may lead to costly downtime, severe wear of the secondary shaft bearings, and even catastrophic transmission system failure. Therefore, in the procurement process, going beyond the price factor, deeply understanding its key quality indicators and establishing strict supplier evaluation standards are the cornerstones for ensuring the long-term stable operation of equipment and optimizing the total cost of ownership.
This article will systematically analyze the core quality attributes of the secondary axle box guard and provide you with a comprehensive supplier evaluation framework.
First, decode key quality indicators: Engineering language beyond size specifications
The quality of the auxiliary axle box guard cannot be judged merely by sight. It must be defined through a series of quantifiable engineering indicators, which are directly related to its performance throughout its service life.
1. Materials Science and Mechanical Properties
Material is the first line of defense for the performance of the shield. Common materials include high-strength steels (such as Q345B/Q550D), as well as wear-resistant steels that perform better under harsh working conditions (such as Hardox 400/500).
The balance between hardness and toughness: Hardness (usually expressed as Brinell hardness HBW or Rockwell hardness HRC) determines the shield’s ability to resist the impact of flying debris and abrasive wear. For example, the typical hardness value of Hardox 450 is approximately 425 HBW. However, the sole pursuit of high hardness may lead to an increase in material brittleness and cause fracture under impact. Therefore, it is necessary to simultaneously examine the impact toughness of the material (measured by the Charpy V-notch impact test, which should reach a specific joule value at -20°C) to ensure that it can absorb energy without cracking at low temperatures or high impact loads.
Chemical composition and microstructure: High-quality steel should have an accurate ratio of elements such as carbon, manganese, chromium, and molybdenum, and achieve a uniform and refined microstructure (such as tempered martensite or bainite) through controlled rolling and controlled cooling or quenching and tempering processes. This is the fundamental guarantee for its high strength and high wear resistance.
2. Structural Integrity and Manufacturing Process
The design and manufacturing process of the shield determine its structural strength and long-term sealing reliability.
Welding process and non-destructive testing: Shields are usually made by welding multiple steel plates together. The quality of weld seams is of vital importance. Gas shielded welding (such as MAG) and other automated or semi-automated welding processes should be adopted to ensure that the weld seam has sufficient penetration and is free of defects. All critical load-bearing welds must undergo 100% non-destructive testing (NDT), such as magnetic particle inspection (MT) or liquid penetrant testing (PT), to eliminate potential defects such as cracks and incomplete fusion.
Stress relief treatment: The welding process generates residual stress, which significantly reduces the fatigue life and dimensional stability of components. A crucial post-treatment process is to carry out overall stress relief heat treatment. By heating the welded parts to a specific temperature (such as below the Ac1 point), holding them for a period of time and then cooling them slowly, the residual stress can be effectively reduced by 70% to 80%, thereby significantly enhancing the anti-deformation and anti-cracking capabilities of the shield under long-term vibration conditions.
Dimensional accuracy and positional tolerance: The dimensional accuracy of the mating surface between the shield and the main unit box, the sealing groove, and the hole spacing tolerance of the bolt holes must be strictly controlled within the range required by the drawing (usually following the ISO 2768-mK standard). Precise tolerances ensure the convenience of installation and provide a flat and uniform compression surface for effective sealing.
3. Surface treatment and long-lasting anti-corrosion
Crushers often operate in dusty and humid environments, and corrosion is one of the main modes of shield failure.
Pretreatment and Coating System: Effective anti-corrosion begins with surface pretreatment. The workpiece should undergo shot blasting or sandblasting treatment to achieve a cleanliness level of Sa 2.5 and form an anchor pattern structure with a specific roughness (such as 50-80μm) to enhance the adhesion of the coating.
Coating selection and thickness control: According to the environmental corrosion grade (C3-C5 grades), the corresponding coating system should be selected. For instance, a common heavy-duty anti-corrosion solution is a coat of epoxy zinc-rich primer (providing cathodic protection) + a coat of epoxy mica intermediate paint (shielding and barrier) + a coat of polyurethane topcoat (weather resistance and chemical resistance). The dry film thickness (DFT) of each coating should be measured by a magnetic thickness gauge to ensure that the total thickness meets the specified requirements (for example, 240-280μm), and there should be no appearance defects such as missed coating, sagging, or orange peel.
Second, build a comprehensive supplier evaluation framework
After determining the product quality standards, the next crucial step is to select a partner who is capable and willing to continuously meet these standards.
1. Technology research and development and engineering support capabilities
An outstanding supplier is not only a manufacturer but also a provider of technical solutions.
Drawing Comprehension and Optimization capability: Assess whether its engineering team can accurately understand your original drawings and, based on manufacturing processes and experience, provide reasonable optimization suggestions (such as optimizing the structure to facilitate welding or reduce stress concentration without affecting functionality).
Material Certification and Process Documents: Require suppliers to provide material certificates (MTC) for the main steel materials to ensure they meet the standards you specify. At the same time, review its welding Procedure Qualification report (WPQR) and Welding Procedure Specification (WPS), which are the procedural guarantees for the stability of its welding quality.
2. Production Manufacturing and quality Control System
Production hardware and management systems are the guarantee of quality consistency.
Equipment and Capacity: Understand its core processing equipment, such as CNC laser/plasma cutting machines, bending machines, welding robots, etc. Evaluate its production capacity and flexible production capacity to see if they can meet your batch demands and urgent order requirements.
Quality Control process: Suppliers must establish a full-process quality control from raw material incoming inspection (IQC), process inspection (IPQC) to final outgoing inspection (FQC). The key is to review its inspection records and test reports to confirm whether it has the necessary testing methods mentioned in the text, such as hardness testers, coating thickness gauges, and non-destructive testing equipment.
System Certification Obtaining ISO 9001 quality Management system certification is the most basic requirement. In addition, specific industry certifications (such as CE, API, etc.) are also strong evidence of the maturity of its quality management.
3. Supply Chain Stability and market Reputation
Raw Material supply chain: Understand the sources of its main raw materials such as steel and whether it has established long-term cooperative relationships with large and well-known steel mills. This is related to the stability of raw material quality and its ability to resist price fluctuations.
Customer Cases and Industry Reputation: Although no specific cases are involved, it is possible to examine the industry field and customer group hierarchy of its products and services. Providing long-term support for well-known Oems or large mining groups usually indicates that their products have undergone severe market tests. It is also crucial to learn about its reputation and performance record through industry channels.
Purchasing a high-quality auxiliary axle box guard is a systematic process of transforming engineering requirements into physical products and selecting the right partners. It requires purchasing decision-makers not only to focus on the final product, but also to have an insight into the material science, manufacturing processes and quality control systems behind it. By strictly adhering to the above key quality indicators and applying a systematic supplier evaluation framework, you will be able to effectively identify those high-quality suppliers with profound engineering expertise and a commitment to quality. Such cooperation will eventually translate into higher availability, lower life cycle costs and stronger market competitiveness of your crushing equipment. In the field of heavy machinery, being meticulous about every detail is the greatest responsibility for the overall value.
