Dynamic Balancing Calibration: Why Must Rotating Components Like Rotors and Hammer Heads Undergo Dynamic Balancing Testing?
Last week, I received another urgent call from a long-time client. He had just installed a new set of hammer heads, but the machine shook violently as if it were about to fall apart the moment it started up. The bearings burned out in less than a week. A single day of downtime cost him tens of thousands. I asked, “Did you dynamically balance the new hammers?” He froze. This isn’t an isolated case. In the crusher industry, too many spend money on “high-quality” parts while overlooking the invisible killer: dynamic balancing. An unbalanced rotor or hammer is like a machine’s heart disease—it will eventually trigger systemic complications. This article skips complex formulas and cuts straight to the truth. By the end, you’ll understand that dynamic balancing isn’t an optional service from parts suppliers—it’s essential for extending equipment lifespan and reducing overall costs. Let’s dive into the details.
I. Vibration as the “Killer”: How Imbalance Destroys Your Equipment
Excessive machine vibration is plain to see. But do you know how it wreaks havoc? An unbalanced rotating component is like an unbalanced car wheel. At high speeds, the eccentric mass generates immense centrifugal force. This force periodically impacts bearings, shafts, and even the entire frame.
The damage unfolds like a chain reaction. Bearings suffer first. The extra load causes premature fatigue, rapid temperature spikes, and eventual burnout. Next, connecting bolts loosen from vibration, seals fail, and oil leaks occur. Over time, even the main shaft can fatigue and crack. Worst of all, vibration transfers to the foundation, affecting surrounding equipment.
We handled a case at a limestone crushing plant. After welding repairs on their impact crusher rotor, vibration readings skyrocketed from 4 mm/s to 18 mm/s. The customer assumed it was a bearing issue, replacing them three times without success. Our on-site dynamic balancing correction immediately reduced vibration below 5 mm/s. This saved over $10,000 in bearing and downtime costs alone. Users often ask: “Do new rotors need balancing too?” Yes! Casting and machining always involve tolerances. Leaving them unbalanced at the factory is gambling.
II. What Does Dynamic Balancing Actually “Correct”? The Principle Is Simple
It sounds technical, but the principle isn’t complex. Any rotating component has uneven mass distribution. There’s always a heavier spot (heavy zone). Dynamic balancing uses specialized instruments to locate and quantify this center of gravity.
Then, by adding counterweights (material) to lighter areas or removing mass (drilling, grinding) from heavier areas, the mass distribution is balanced. The goal is to eliminate the net centrifugal force during rotation. This ensures smooth machine operation. The key lies in the “dynamic” aspect—testing occurs while the component is spinning at high speed, yielding greater precision than static balancing.

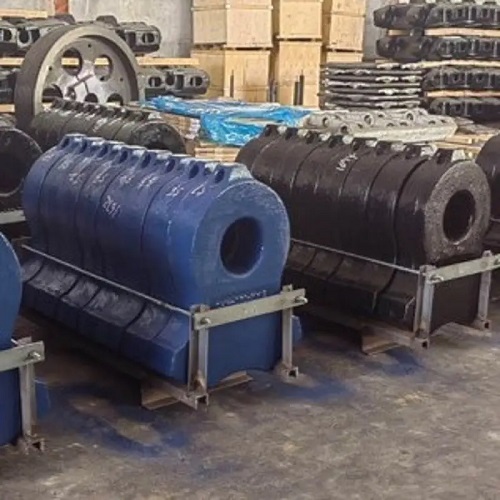

Consider this classic example: the hammer assembly of a large hammer crusher. A single hammer is static, but mounting dozens on a rotor can shift the center of gravity. We once inspected a client’s unit and discovered they had installed replacement hammers without grouping them by weight as per the manufacturer’s markings. Heavier hammers were clustered on one side, causing severe imbalance. After regrouping and pairing the hammers, the issue was resolved. Thus, dynamic balancing isn’t a one-time task—it may need to be repeated after repairs or component replacements.
III. Accuracy Grade G-Value: How Much “Balance” Does Your Equipment Need?
Not all equipment requires the same balancing precision. Here lies a core concept: the balancing accuracy grade (G-value), measured in mm/s. A lower G-value indicates higher precision requirements. Inappropriate selection either fails to resolve issues due to insufficient precision or wastes money through excessive precision pursuit.
ISO 1940 standards provide clear guidelines. For instance, coarse crushers like jaw crushers and hammer crushers can tolerate a G-value up to Grade 6.3. Conversely, precision components like fan rotors and motor rotors may require Grade 2.5 or higher. This depends on the machine type, rotational speed, and operational demands. Higher rotational speeds demand greater balancing precision.
One purchaser complained: “The supplier claimed G6.3 balance, but vibration remained excessive.” Investigation revealed the issue stemmed from operating conditions. His equipment ran at 20% higher speed than standard models. Applying generic standards was clearly inadequate. We recalculated based on actual rotational speed and achieved compliance only by demanding G4.0 balance. Balance precision must be tied to actual equipment speed and application—blindly following standards won’t work.
IV. On-site Dynamic Balancing vs. Factory Balancing: When to Choose Which?
This is a critical decision in practical operations. Factory balancing is performed on specialized balancing machines. It offers high precision and is the preferred choice for new products leaving the factory or components returning after major overhauls. However, it requires disassembling parts and transporting them to the workshop. On-site dynamic balancing is different. Equipment doesn’t need to be disassembled; it’s performed directly on the machine body using portable instruments. It saves time and effort, making it suitable for online maintenance or large rotors that cannot be disassembled.
How to choose? It depends on the situation. New rotors or overhauled rotors must undergo factory balancing to establish a solid foundation. After equipment has been running for a period, increased vibration due to wear, scaling, or component loosening makes on-site dynamic balancing suitable for rapid restoration.
Consider a case involving a cement plant’s ball mill fan. The fan rotor weighed 3 tons, making disassembly, transportation, and reassembly extremely costly and resulting in prolonged downtime. We performed on-site dynamic balancing on the equipment’s foundation platform, completing testing and correction within two days. Vibration levels recovered from dangerously high to excellent ranges, avoiding unplanned major repairs. The client asked: “Does on-site balancing match factory results?” For correcting wear or minor imbalances, it suffices. However, components inherently poorly balanced still require factory return.
V. The Economic Calculation: Is Dynamic Balancing a Cost or an Investment?
Many view dynamic balancing as an “extra expense.” Let’s examine the overall costs. A professional dynamic balancing service ranges from thousands to tens of thousands of dollars. But what about the cost of not balancing? Take a medium-sized impact crusher as an example:
• Bearing life: May shorten from one year to three months.
• Unplanned downtime: At least one day of lost production value per incident.
• Energy consumption: Vibration-induced efficiency drops commonly increase electricity costs by 5%-10%.
• Safety risks: Severe vibration may cause structural component failure, posing major safety hazards.
The cumulative potential losses far exceed the cost of dynamic balancing. It represents an insurance investment for long-term, stable equipment operation. More importantly, for buyers and wholesalers, offering components or assemblies rigorously tested for dynamic balance is your strongest selling point. You’re not selling a piece of metal—you’re delivering a promise of worry-free operation.
Ultimately, dynamic balancing is an indispensable requirement for rotating machinery. It transforms a small, visible investment into protection against a series of invisible, massive risks. When procuring or replacing rotors or hammers next time, insist on a “dynamic balance report” as a mandatory acceptance criterion. This not only protects your equipment but safeguards your profits.
FAQ
Q1: For newly purchased complete rotor sets where the supplier provides a balance report, do we still need to test them after installation?
We recommend conducting a simple on-site verification. Transportation jolts or slight misalignment during installation can affect final balance. Measure vibration values at key bearing housings after startup. If vibrations fall within acceptable ranges (typically ISO standard zones), installation is considered satisfactory. Excessive vibrations require contacting the supplier or performing on-site fine-tuning.
Q2: Hammer heads wear unevenly. Do they require periodic dynamic balancing?
Yes, This is a critical maintenance point. Wear on hammer heads during operation creates new mass distribution imbalances. We recommend incorporating vibration monitoring into routine inspections. When vibration readings significantly exceed baseline values (e.g., a 30% increase), consider shutting down the equipment. Inspect hammer head wear and perform on-site dynamic balancing correction to extend the entire rotor system’s lifespan.
Q3: Are there qualification requirements for operators performing dynamic balancing correction?
Strict qualifications are required. Operators must understand the principles, be proficient with the instruments, and possess extensive experience. On-site dynamic balancing, in particular, demands accurate determination of the imbalance phase and precise calculation of the counterweight mass and position. It is recommended that this be performed by an authorized service engineer from the equipment manufacturer or a professional third-party service provider, with a formal report issued. Amateur operation may prove counterproductive.
