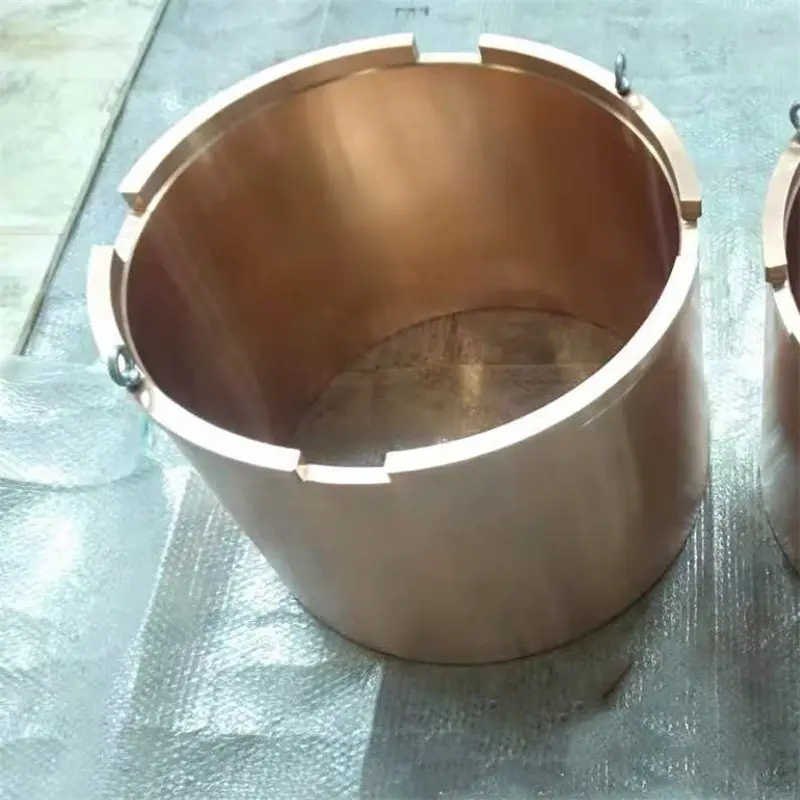

In modern industrial production, the cone grinding machine, as an important crushing equipment, is widely used in the crushing processing of various materials such as ores, building materials, and chemical raw materials. The copper sleeve, as the key sliding bearing of the cone grinding machine, is located between the main shaft of the moving cone and the large gear, and bears the axial and radial loads during the crushing process. The design and material of copper sleeves not only directly affect the stable operation of the machine, but also determine the durability and maintenance cost of the equipment. This article will delve deeply into the role of copper sleeves, key design points, material selection, and their significance in practical applications.
First, the function of the copper sleeve
1. Withstand axial and radial loads
The copper sleeve, as a sliding bearing, its core function is to support the main shaft of the moving cone and bear the axial and radial loads generated during the crushing process. During the operation of the cone grinding machine, the crushing of materials generates huge impact force and pressure, which are transmitted to the copper sleeve through the main shaft of the moving cone. The copper sleeve must have sufficient strength and toughness to ensure stable operation under high loads.
2. Reduce friction and wear
Another important function of the copper sleeve is to reduce the friction and wear between the moving cone spindle and the large gear. By adding lubricants to the surface of the copper sleeve, the friction coefficient can be effectively reduced, heat generation can be decreased, and thus the service life of the equipment can be prolonged. In addition, the material selection and surface treatment process of the copper sleeve also play a crucial role in reducing wear.
3. Ensure the stable operation of the equipment
The performance of the copper sleeve directly affects the stability and reliability of the cone grinding machine. High-quality copper sleeves can ensure the smooth operation of the moving cone spindle under high loads, reduce vibration and noise, and improve the overall performance of the equipment. Therefore, the design of copper sleeves and the selection of materials are of vital importance, directly affecting the long-term stable operation of the equipment.
Second, key points for the design of copper sleeves
1. Size design
The size design of the copper sleeve must match the dimensions of the moving cone spindle and the large gear to ensure good contact and stable support. When designing, the magnitudes of axial and radial loads, as well as the operating speed and working conditions of the equipment, need to be taken into consideration. Through precise dimensional calculation and optimization, it can be ensured that the copper sleeve will not deform or be damaged under high loads.
2. Structural Design
The structural design of the copper sleeve should take into account its force conditions during operation and adopt a reasonable structural form to enhance its strength and stability. For instance, copper sleeves can be designed in a multi-layer structure, with the inner layer made of high-strength materials and the outer layer of wear-resistant materials, to enhance their overall performance. In addition, the surface of the copper sleeve can be designed in the shape of a lubrication groove to ensure the uniform distribution of the lubricant and reduce friction and wear.
3. Lubrication system design
The design of the lubrication system is crucial to the performance of the copper sleeve. Good lubrication can effectively reduce friction and wear, lower heat generation and extend the service life of copper sleeves. The lubrication system should be optimized in design based on the operating conditions and working environment of the equipment to ensure that the lubricant can be evenly distributed on the surface of the copper sleeve. At the same time, the maintenance of the lubrication system is also very important. Regular inspection and replacement of the lubricant can effectively prevent damage to the copper sleeve.
Third, the material selection of the copper sleeve
The material selection of copper sleeves has a direct impact on their performance and service life. Common copper sleeve materials include bronze, brass, white copper, etc. These materials have different performance characteristics and are suitable for different working conditions.
1.Bronze
Bronze is a commonly used material for copper sleeves, featuring excellent wear resistance and fatigue resistance. Bronze has a moderate hardness and can maintain stable performance under high loads. In addition, bronze also has excellent anti-friction properties, which can effectively reduce friction and wear. Bronze copper sleeves are suitable for medium load and high-speed working conditions, which can effectively enhance the stability and service life of equipment.
2. Brass
Brass is a copper-zinc alloy with high strength and good wear resistance. Brass has a relatively high hardness and can maintain good performance under high loads. In addition, brass also has excellent corrosion resistance and is suitable for humid and highly corrosive environments. Brass copper sleeves are suitable for high-load and high-speed working conditions, which can effectively enhance the stability and durability of equipment.
3. White copper
White copper is a copper-nickel alloy with excellent wear resistance and fatigue resistance. White copper has a relatively high hardness and can maintain stable performance under high loads. In addition, white copper also has excellent corrosion resistance and is suitable for humid and highly corrosive environments. White copper copper sleeves are suitable for high-load and high-speed working conditions, which can effectively enhance the stability and durability of equipment.
Fourth, practical application cases
1.Ore crushing
During the process of ore crushing, the cone grinding machine is confronted with tremendous impact force and wear. By using high-quality bronze copper sleeves, the friction and wear between the moving cone spindle and the large gear can be effectively reduced, thereby enhancing the stability and service life of the equipment. For instance, after a certain mining enterprise replaced the equipment with bronze copper sleeves, the wear and tear of the equipment was significantly reduced, the service life was extended by more than 30%, and the crushing efficiency was also improved.
2. Building materials processing
In the processing of building materials, cone grinding machines are used to crush materials such as concrete blocks and bricks. These materials have a relatively high hardness and exert a greater impact force on the equipment. By using brass copper sleeves, the key components of the equipment can be effectively protected, reducing wear and damage. After a certain building materials processing enterprise installed brass copper sleeves, the maintenance cost of the equipment was significantly reduced and the production efficiency increased by 20%.
3. Chemical raw material processing
During the processing of chemical raw materials, the cone grinding machine needs to operate in a humid and highly corrosive environment. By using white copper sleeves, the anti-corrosion performance of the equipment can be effectively enhanced, and wear and damage can be reduced. After a certain chemical enterprise installed white copper sleeves, the service life of the equipment was significantly prolonged and the maintenance cost was greatly reduced.
Fifth, Conclusion
The copper sleeve, as a key sliding bearing of the cone grinding machine, is designed to effectively withstand the axial and radial loads during the crushing process, reduce friction and wear, and ensure the stable operation of the equipment. Through reasonable design and material selection, copper sleeves can fully play their role, enhancing the stability and durability of the equipment. In practical applications, the use of copper sleeves not only reduces the wear and damage of equipment, but also improves the crushing efficiency and lowers the maintenance cost. Therefore, the application of copper sleeves in cone grinding machines has significant practical significance and provides strong support for the development of the industrial crushing field.
