For equipment managers and procurement decision-makers in the global mining, cement, and mineral processing industries, when ordering spherical liners—the key wear-resistant components of ball mills—apart from focusing on their material performance (such as high manganese steel, high chromium cast iron, and alloy steel) and service life, there is an often underestimated but crucial link: international transportation packaging. Improper packaging can cause spherical liners to rust, deform, or even break during weeks of sea or land transportation, resulting not only in direct economic losses but also in significant production delays due to equipment downtime for replacement. This article will delve into professional spherical liner transportation packaging specifications, helping you avoid risks from the source and ensure that spare parts arrive at the site safely and on time.

A comprehensive spherical liner packaging solution is far more than just “packing into boxes”. It is a systematic project whose core lies in addressing four major challenges during transportation: moisture and rust prevention, shock absorption and buffering, fastening and anti-shift, and convenient loading and unloading. First, before the liners are packed into the box, they must undergo thorough cleaning and rust prevention treatment. Each liner is usually fully wrapped with VCI (Volatile Corrosion Inhibitor) packaging paper. This technology can continuously release anti-rust factors in a closed space, providing more than 12 months of anti-rust protection in the marine container environment with drastic temperature and humidity changes—far cleaner and more effective than traditional anti-rust grease.

Shock absorption and buffering are key to protecting precision cast liners (especially edges and bolt hole areas) from collision damage. Between liners, and between liners and the inner wall of the packaging box, high-density EPS (polystyrene) foam or customized polyethylene gaskets must be filled. These materials can not only absorb vibrations and impacts during transportation but also avoid scratches or stress concentration points caused by direct contact between liners. For large liners weighing more than 500 kg, a dedicated foam support mold must be designed at the bottom to ensure uniform weight distribution and prevent sliding inside the box.

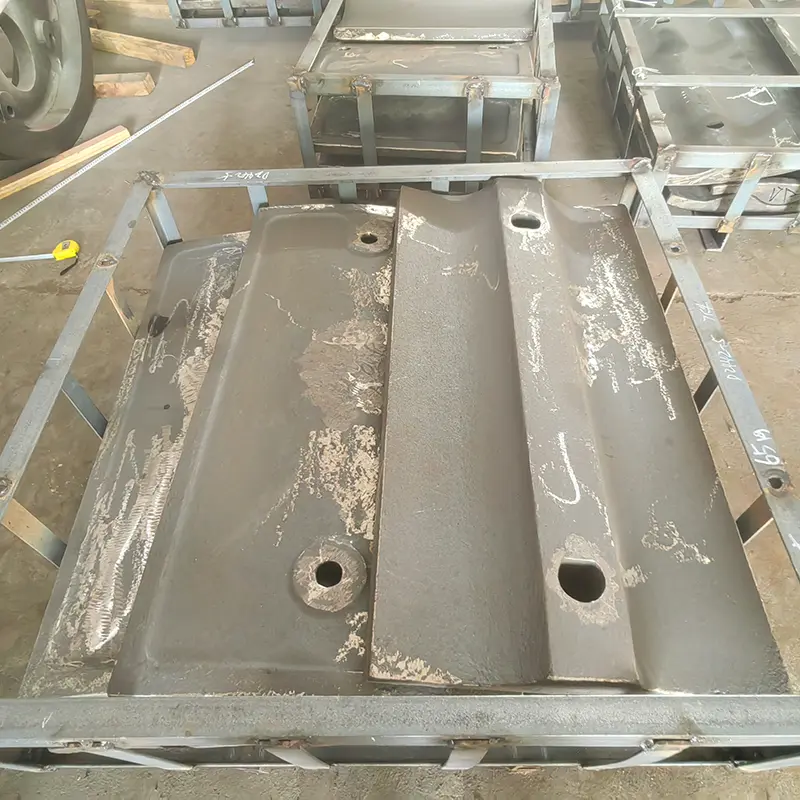

Fastening and box structure are the final physical barriers for safe transportation. For internal fixing, high-strength nylon strapping or rust-proof steel strips must be used to firmly bind multiple liners to a sturdy wooden pallet or steel bracket, ensuring they are “completely immobile” inside the box. For outer packaging boxes, fumigated solid wood boxes complying with the ISPM 15 international standard are preferred. Their structural strength must be calculated to withstand the pressure of multi-layer container stacking above. Internationally recognized graphical labels, including “center of gravity”, “moisture-proof”, “do not drop”, and “lifting point”, must be pasted in prominent positions on the box to guide port and logistics personnel in standardized operations.

From the purchaser’s perspective, clarifying packaging specifications as part of the technical annex when sending inquiries or signing contracts is the best practice to protect their own rights and interests. You should require suppliers to provide detailed packaging plan descriptions, including anti-rust materials used, buffer material specifications, box design load-bearing capacity, and photo records. This not only helps screen reliable suppliers with professional export experience but also avoids disputes upon arrival. A successful procurement means loss-free transportation from the production line to the installation line. Investing in professional packaging is essentially purchasing an indispensable “transportation insurance” for your production continuity.
